Sometimes a bus bar is too large, PowerPosts are great solution for tight spaces.
Blue Sea Systems bus bars are the industry standard, but they are not be ideal for all applications. The PowerPost Plus offers the same quality and function found in Blue Sea Systems bus bars and packs it into a smaller footprint. Organize and distribute power from a single point. Either behind the breaker panel or in a locker, a PowerPost can turn a mess of stacked wires into something more organized and easier to troubleshoot. Use them to distribute the power from a single breaker to several loads; examples being navigation lights or cabin light circuits. They also provide a way to connect and disconnect wires as is required to un-step a mast; a must for sailors in the Midwest and New England. Available in two stud sizes, both provide space for eight ring terminals. An insulating boot protects the stud terminal from accidental contact. When space is tight, a PowerPost is the solution.
Key Features
- Small footprint ; idea for applications where a conventional bus bar will not fit
- Eight #8-32 Stainless steel screws allow high torque loads to reduce resistance in the connections feeding the bar

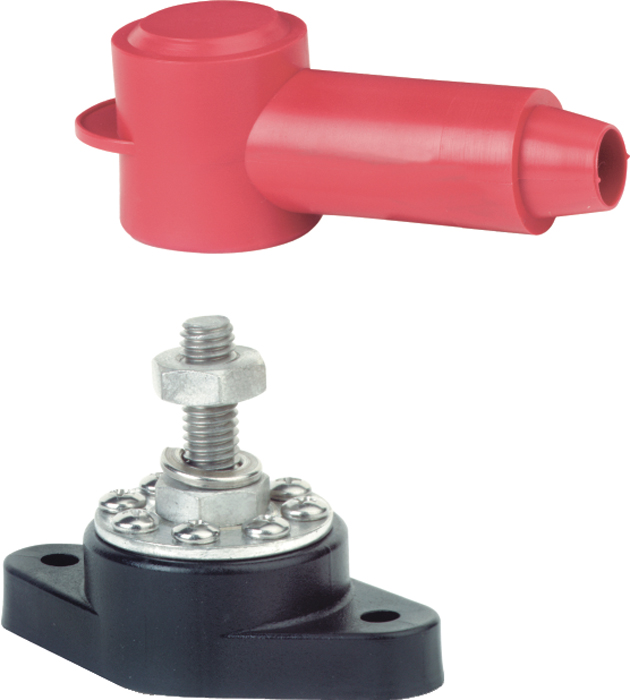

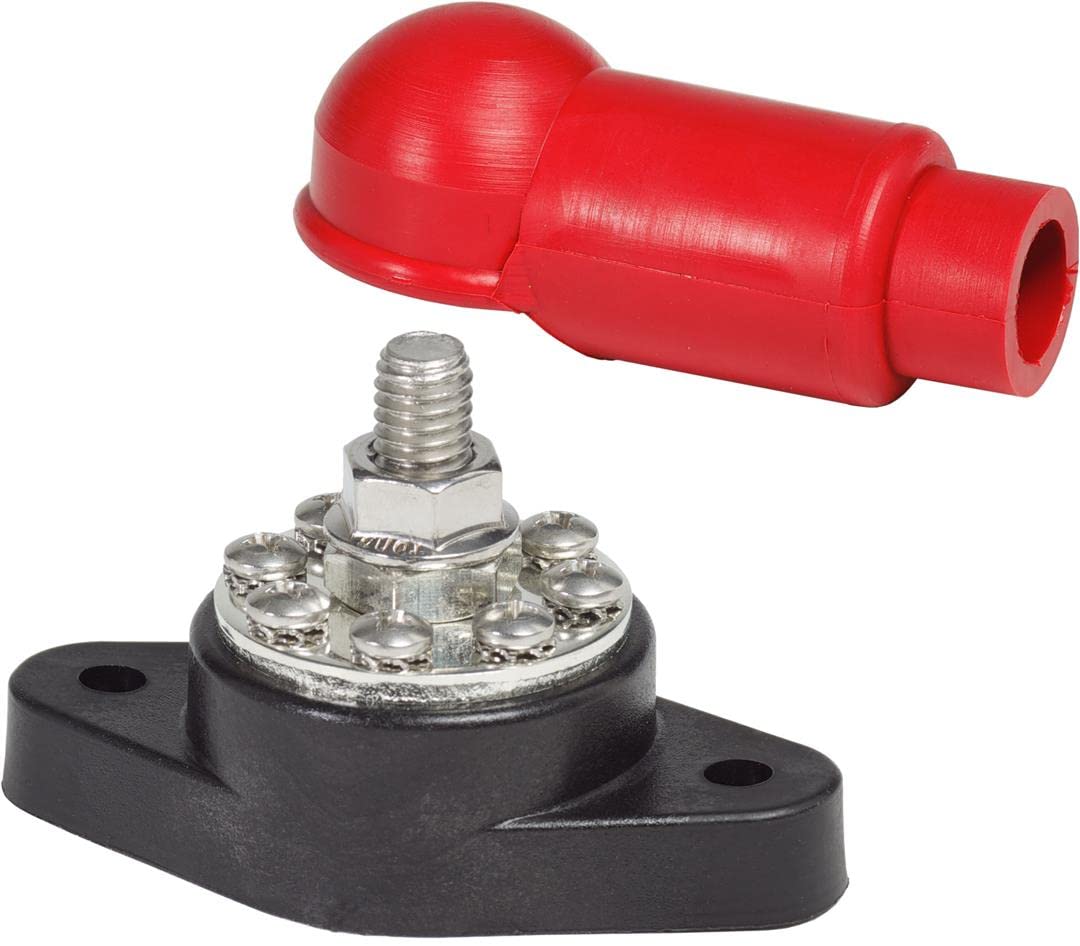

- Included red insulator boot protects stud from accidental contact
- Reinforced heat-resistant polycarbonate
- Lifetime warranty
Specifications
- Maximum Voltage DC: 48V
- Continuous Rating DC: 150A
- of terminals: 8
- of terminal stud: 5/16"-18 stud (2102), 3/8"-16 stud (2103)
- Base material: Reinforced Polycarbonate
- Bus material: Tin-plated copper CDA 110/UNS 1000
- Dimensions: 3 5/16"L x 1 3/4" W x 2 "H
